UC - Series

Download the brochure


UC-Series, with 2.3 pitch, in standard 500x500 mm format, is our series for indoor bendable LED wall solutions. Thanks to its modular design and staggered alignment, any shaped can be formed. The modules are interchangeable and the cabinets are bendable up to ±9° in steps of 3.

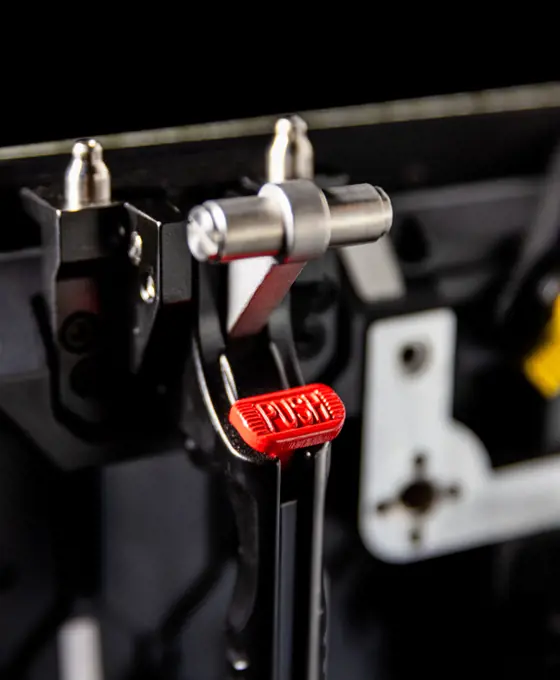

Thanks to its low weight and quick locking system, it guarantees maximum speed during assembly. The cabinet design allows you to compose screens with sharp 90° and 270° angles. Due to its the very high resolution, it allows you to obtain perfect visual rendering thanks to the i9+ Receiving Cards which support:


  • HDR;
  • Low Latency with 1 frame delay;
  • Colour space management without calibration;
  • Editing individual shades.


The high-performance SMDs ensure optimal contrast for high visual performance. Front and rear maintenance guarantees speed in any set-up. The UC-Series bendable LED wall is ideal for television and broadcast applications thanks to the very high refresh rate, which reaches 3840 Hz and the high grey scale.

Available for rental

Technical data






SMD Nationstar 1515

Module resolution

105 x 105 pixel

Module size

250 x 250 mm

Driving IC

MBI 5253B

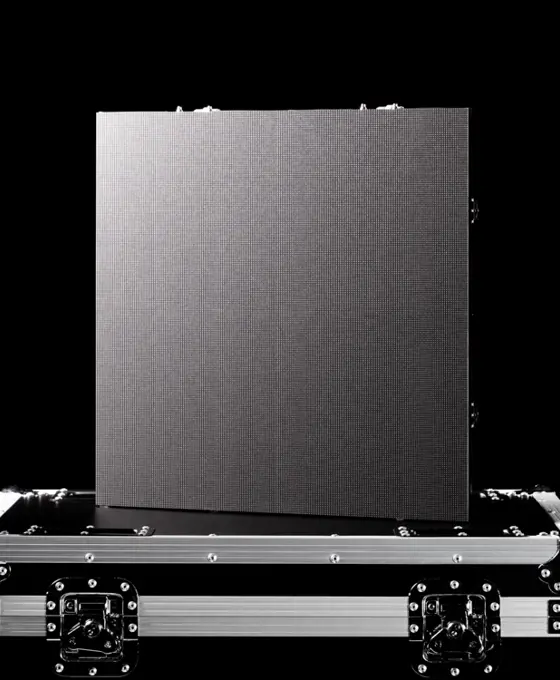

Cabinet size

500 x 500 mm



Cabinet resolution

210 x 210 pixel

Pixel density

176.400 pixel/m2


Alluminio pressofuso


7,4 kg


80 mm


Frontal and rear

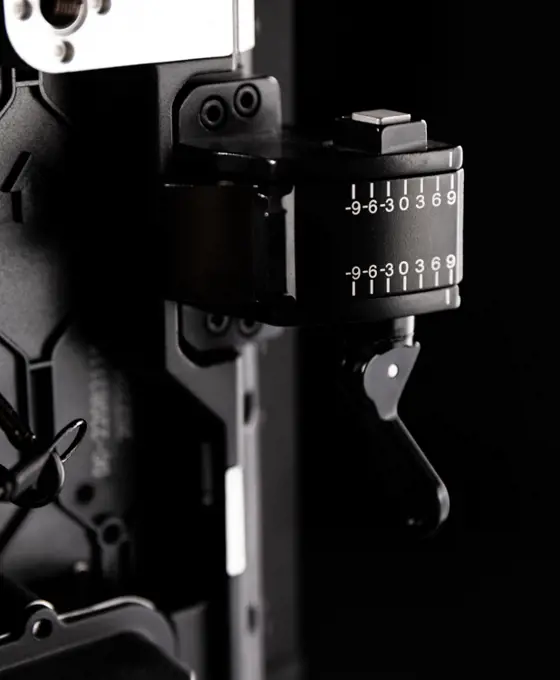

Bending angle

+/- 0°, 3°, 6°, 9°


1200 Nits

Grey scale

14 bit

Refresh rate

> 3840 Hz

Power peak

600 W

Average consumption

200 Wh/m2

Life span

> 100.000 ore

IP rating (Front / Rear)

40 / 21

Main features


Very high brightness




Adjustable brightness

Front maintenance

Rapid assembly

Perfect alignment

On-site, remote and cloud management

1 / 7

Illuminate your brand

Through Wave&Co LED screens you can offer your customers a #beyondimaginable vision experience.


Contact us for further information





Our team of architects, designers and technicians can integrate and digitalise your projects through our screens, creating furnishing elements that blend in with the surrounding environment, based on in-depth knowledge of the product and its control systems, to guarantee a very high quality yield.



Discover more

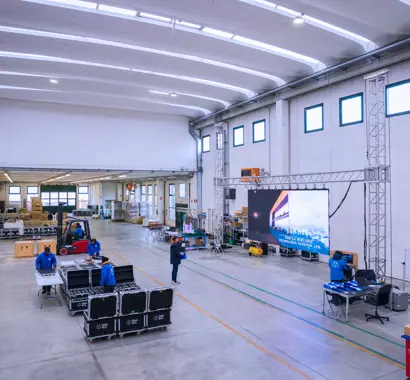

Our specialist technicians, through years of experience in the field, test every single module before installing the screens.
