Hydro

BRIGHTNESS
5000 – 7000 Nits
DEGREE OF PROTECTION
66/66
MAINTENANCE
Front and rear



Download the brochure

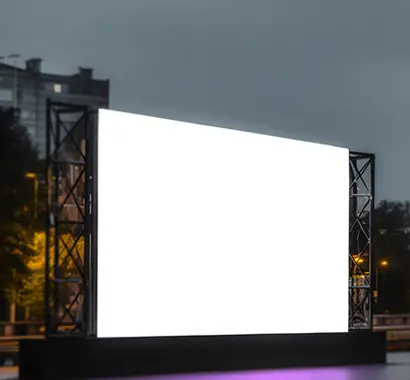

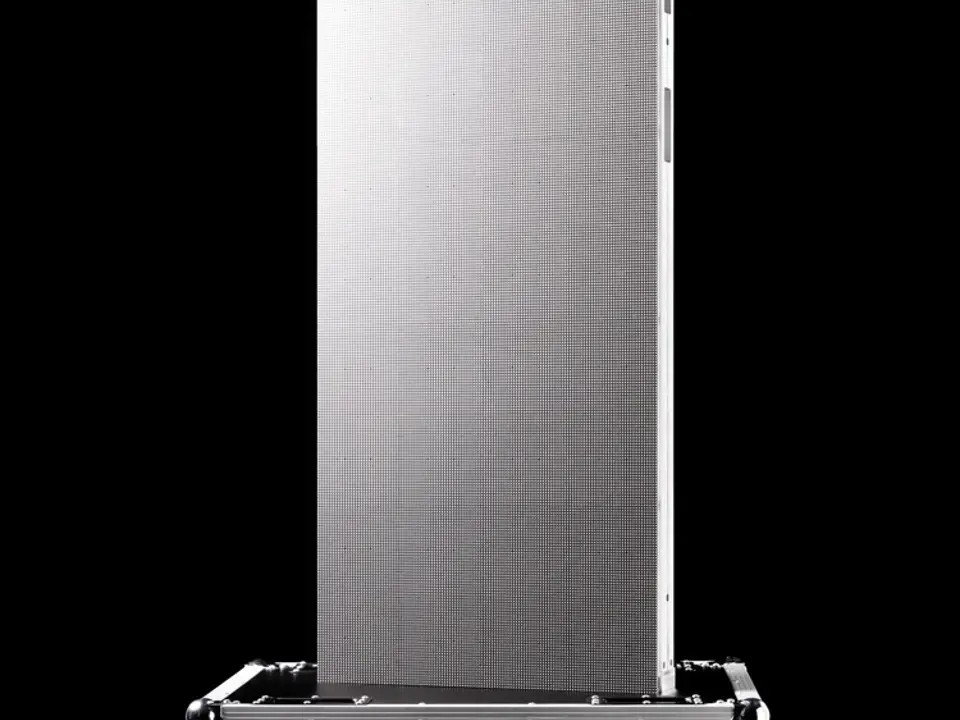

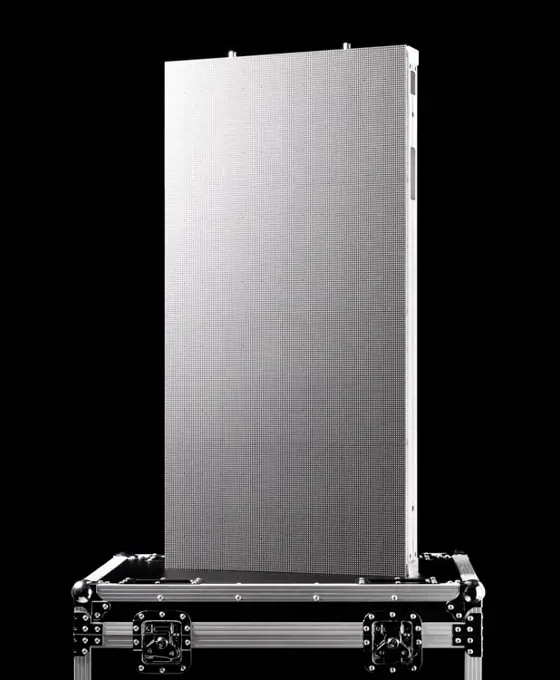

Modular Ledwall for fixed outdoor installation, characterised by excellent vision quality and very high brightness of up to 10,000 nits.

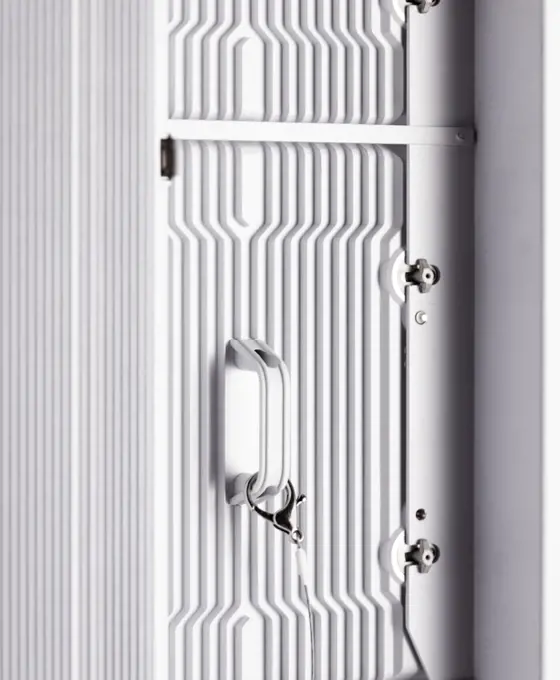

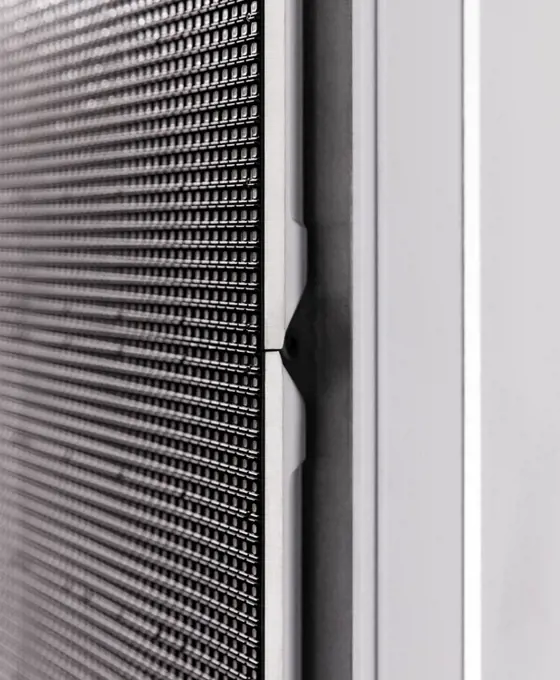

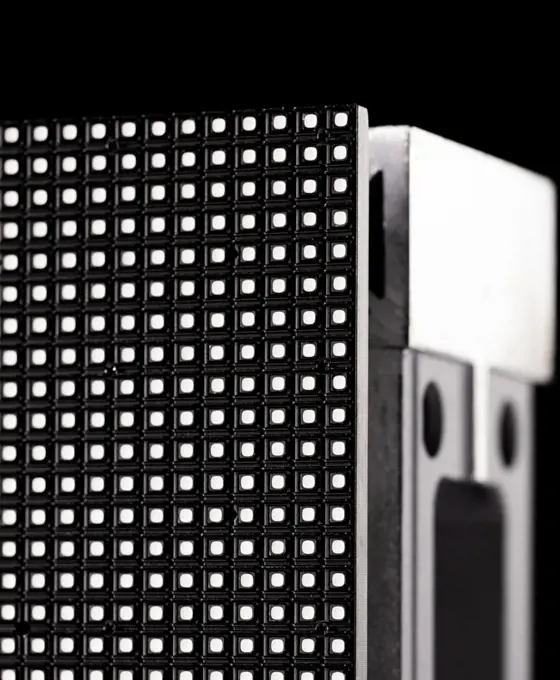

Slim, modular design with high precision quick mounting system for perfect alignment. Front and rear maintenance with rapid magnetic module attachment system.



Thanks to the adjustable brightness via the appropriate sensors, the screen adapts to any external light condition, ensuring maximum visibility of your message.



The front and rear IP66 protection ensures optimal functionality of the screen in any weather condition.

Main features



Very high resolution





Modular

Adjustable brightness

Front maintenance

Rapid assembly

Perfect alignment

On-site, remote and cloud management

1 / 7

Technical data





Pitch

3.9

6.6

Technology

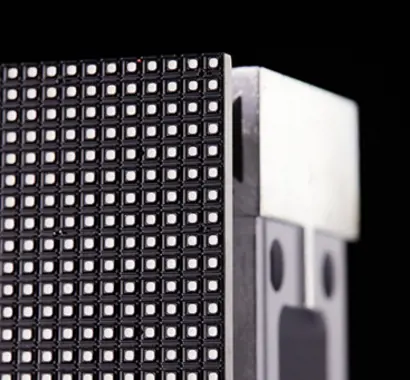

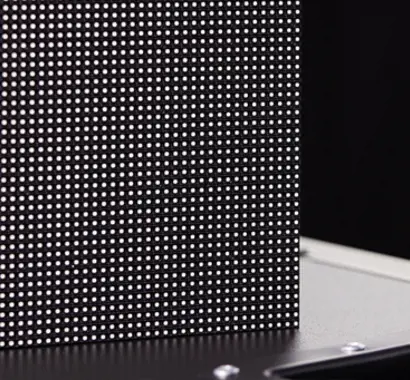

SMD Triad Led

SMD Triad Led

Cabinet dimension

500 x 500 mm | 500 x 750 mm | 500 x 1000 mm

800 x 900 mm | 800 x 1200 mm | 1200 x 1200 mm

Ratio

1:1 | 2:3 | 1:2

8:9 | 3:4 | 1:1

Cabinet resolution

128 x 128 mm | 128 x 192 mm | 128 x 256 mm

120 x 135 mm | 120 x 180 mm | 180 x 180 mm

Material

Alluminio pressofuso

Alluminio pressofuso

Thickness

82 mm

100 mm

Maintenance

Front and rear

Front and rear

Brightness

5000 - 7000 Nits

6000 - 8000 Nits

View angle (H/V)

160° / 160°

160° / 160°

Refresh rate

> 3840 Hz

> 3840 Hz

Power peak

650 W

580 W

Average assumption

195 Wh/m2

175 Wh/m2

Life span

> 100.000 ore

> 100.000 ore

IP rating (front/rear)

66 / 66

66 / 66

Illuminate your brand

Through Wave&Co LED screens you can offer your customers a #beyondimaginable vision experience.



Contact us for further information





Where you can use our products

Services

Planning

Our team of architects, designers and technicians can integrate and digitalise your projects through our screens, creating furnishing elements that blend in with the surrounding environment, based on in-depth knowledge of the product and its control systems, to guarantee a very high quality yield.





Discover more

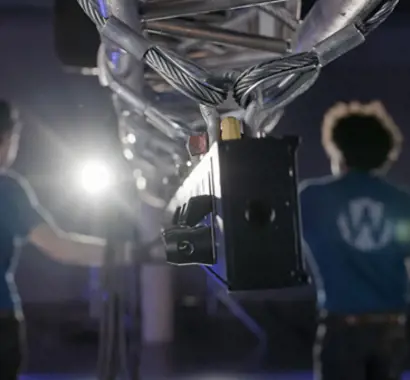

Installation
